1.3G/1.3G系列高低壓泵排量參數表
低壓排量 | 高壓排量 | 溢流壓力 | 最高連續壓力 | 最高間隙壓力 | 最高峰值壓力 | 最低轉速 | 最高轉速 | 容積效率 |
V | V | P | P1 | P2 | P3 | nmin | nmax | ηv |
cm3/rev. | cm3/rev. | bar | r/min | % |
2.1 | 1 | 40...45 | 210 | 230 | 250 | 500 | 3600 | ≥93 |
4.2 | 1 |
4.2 | 1.6 |
6.3 | 2.1 |
6.3 | 3 |
6.3 | 3.6 |
8.8 | 1.6 |
8.8 | 2.1 |
8.8 | 3.6 |
10.9 | 2.1 |
10.9 | 3.6 |
10.9 | 4.2 |
13 | 3.2 |
13 | 4.2 |

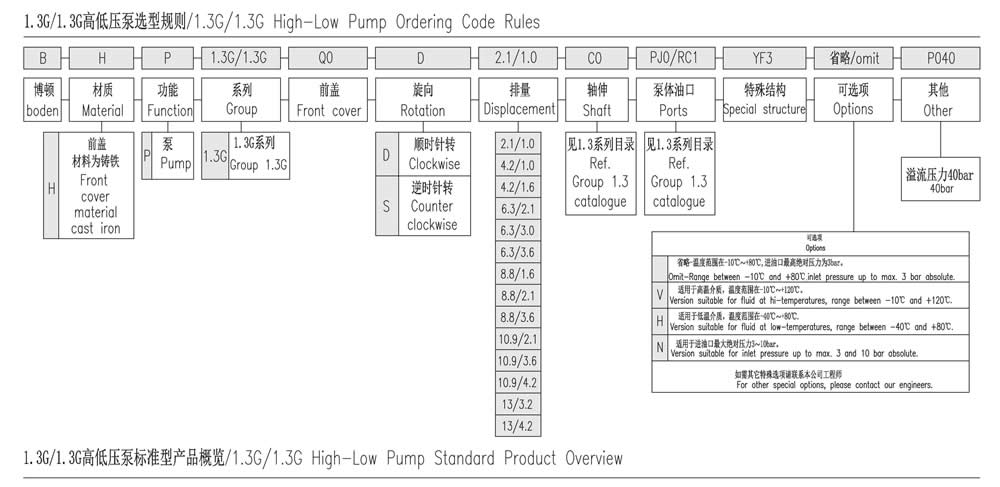

1.3G/1.3G系列高低壓泵選型規則
PDF 下載

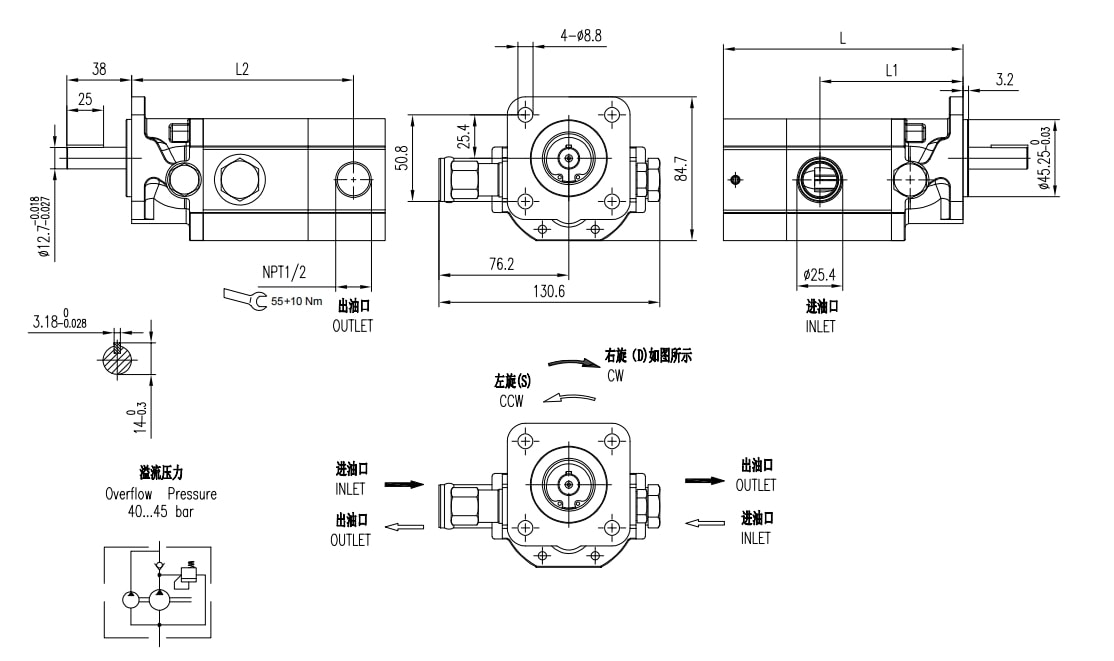

1.3G/1.3G系列高低壓泵標準型產品尺寸
聯系我們
排量 | 最大壓力 | 溢流壓力 | 最高轉速 | 最低轉速 | 重量 | 尺寸 | 油口代碼 | 進油口 | 出油口 |
Low | High | P1 | P2 | P3 | P | | | | L | L1 | L2 | D | d | D | d |
(m3/rev) | (m3/rev) | bar | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | mm | | | mm | |
2.1 | 1 | 210 | 230 | 250 | 40.45 | 3600 | 500 | 1.45 | 157.8 | 64.2 | 100.2 | PJ0 | NC2 | ?25.4 | NPT1/2 |
4.2 | 1 | 210 | 230 | 250 | 3600 | 500 | 1.6 | 157.8 | 64.2 | 100.2 | PJ0 | NC2 | ?25.4 | NPT1/2 |
4.2 | 1.6 | 210 | 230 | 250 | 3600 | 500 | 1.68 | 159.8 | 64.2 | 102.2 | PJ0 | NC2 | ?25.4 | PT1/2 |
6.3 | 2.1 | 210 | 230 | 250 | 3600 | 500 | 1.9 | 154.2 | 61.2 | 95.2 | PJ0 | NC2 | ?25.4 | NPT1/2 |
6.3 | 3 | 210 | 230 | 250 | 3600 | 500 | 1.98 | 157.8 | 61.2 | 95.2 | PJ0 | NC2 | ?25.4 | NPT1/2 |
6.3 | 3.6 | 210 | 230 | 250 | 3600 | 500 | 2 | 159.5 | 61.2 | 99.2 | PJ0 | NC2 | ?25.4 | NPT1/2 |
8.8 | 1.6 | 210 | 230 | 250 | 3600 | 500 | 2.1 | 162 | 69.6 | 103.6 | PJ0 | NC2 | ?25.4 | NPT1/2 |
8.8 | 2.1 | 210 | 230 | 250 | 3600 | 500 | 2.15 | 162.7 | 69.6 | 103.6 | PJ0 | NC2 | ?25.4 | NPT1/2 |
8.8 | 3.6 | 210 | 230 | 250 | 3600 | 500 | 2.25 | 167.9 | 69.6 | 107.6 | PJ0 | NC2 | ?25.4 | NPT1/2 |
10.9 | 2.1 | 210 | 230 | 250 | 3600 | 500 | 2.4 | 170.2 | 77.1 | 111.1 | PJ0 | NC2 | ?25.4 | NPT1/2 |
10.9 | 3.6 | 210 | 230 | 250 | 3600 | 500 | 2.5 | 175.4 | 77.1 | 115.1 | PJ0 | NC2 | ?25.4 | NPT1/2 |
10.9 | 4.2 | 210 | 230 | 250 | 3600 | 500 | 2.55 | 177.7 | 77.1 | 115.1 | PJ0 | NC2 | ?25.4 | NPT1/2 |
13 | 3.2 | 210 | 230 | 250 | 3600 | 500 | 2.98 | 180.7 | 84.1 | 122.1 | PJ0 | NC2 | ?25.4 | NPT1/2 |
13 | 4.2 | 210 | 230 | 250 | 3600 | 500 | 3.04 | 184.7 | 84.1 | 122.1 | PJ0 | NC2 | ?25.4 | NPT1/2 |
