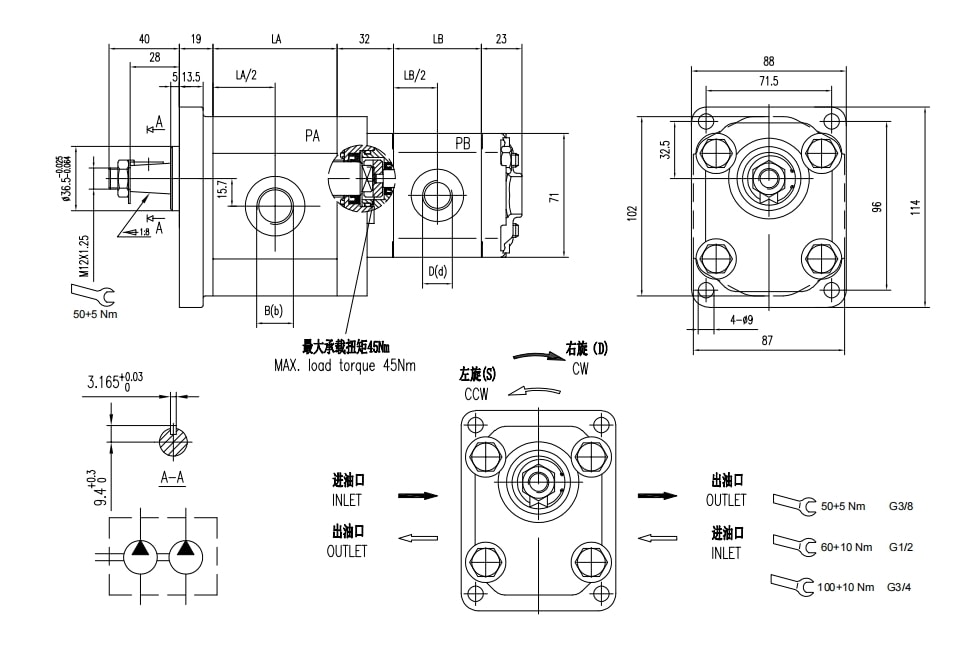

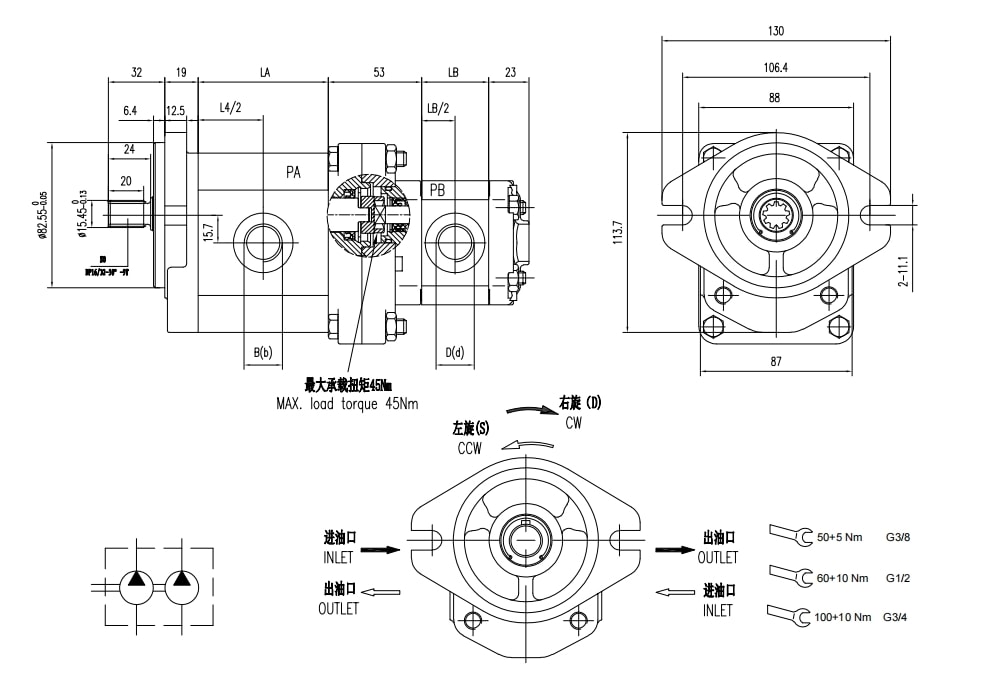

2/1系列標準型產品尺寸
聯系我們
排量 | 最大壓力 | 最高轉速 | 最低轉速 | 尺寸 | 油口代碼 | 進油口 | 出油口 | 油口代碼 | 進油口 | 出油口 |
PA | PB | PA | PB | | | LA | LB | PA | D | d | PB | D | d |
(cm3/rev.) | (cm3/rev.) | bar | bar | (r/min) | (r/min) | mm | mm | | | | | | |
3 | 0.8 | 285 | 270 | 2500 | 600 | 49.1 | 35.6 | L0 | G1/2 | G1/2 | L3 | G3/8 | G3/8 |
4 | 1.1 | 285 | 270 | 50.7 | 36.1 | L0 | G1/2 | G1/2 | L3 | G3/8 | G3/8 |
6 | 1.3 | 285 | 270 | 54 | 37.1 | L0 | G1/2 | G1/2 | L3 | G3/8 | G3/8 |
8 | 1.6 | 285 | 270 | 57.3 | 38.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
10 | 1.8 | 285 | 270 | 60.6 | 39.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
12 | 2.1 | 285 | 270 | 63.9 | 40.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
14 | 2.7 | 265 | 270 | 67.3 | 42.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
16 | 3.2 | 265 | 250 | 70.7 | 44.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
18 | 3.7 | 265 | 250 | 74 | 46.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
20 | 4.2 | 235 | 250 | 77.3 | 48.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
22 | 4.8 | 235 | 230 | 80.6 | 50.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
25 | 5.8 | 215 | 230 | 85.6 | 54.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
28 | 7 | 190 | 200 | 90.6 | 58.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
30 | 8 | 170 | 200 | 93.9 | 62.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
聯系我們
排量 | 最大壓力 | 最高轉速 | 最低轉速 | 尺寸 | 油口代碼 | 進油口 | 出油口 | 油口代碼 | 進油口 | 出油口 |
PA | PB | PA | PB | | | LA | LB | PA | D | d | PB | D | d |
(cm3/rev.) | (cm3/rev.) | bar | bar | (r/min) | (r/min) | mm | mm | | | | | | |
3 | 0.8 | 285 | 270 | 2500 | 600 | 49.1 | 35.6 | L0 | G1/2 | G1/2 | L3 | G3/8 | G3/8 |
4 | 1.1 | 285 | 270 | 50.7 | 36.1 | L0 | G1/2 | G1/2 | L3 | G3/8 | G3/8 |
6 | 1.3 | 285 | 270 | 54 | 37.1 | L0 | G1/2 | G1/2 | L3 | G3/8 | G3/8 |
8 | 1.6 | 285 | 270 | 57.3 | 38.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
10 | 1.8 | 285 | 270 | 60.6 | 39.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
12 | 2.1 | 285 | 270 | 63.9 | 40.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
14 | 2.7 | 265 | 270 | 67.3 | 42.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
16 | 3.2 | 265 | 250 | 70.7 | 44.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
18 | 3.7 | 265 | 250 | 74 | 46.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
20 | 4.2 | 235 | 250 | 77.3 | 48.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
22 | 4.8 | 235 | 230 | 80.6 | 50.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
25 | 5.8 | 215 | 230 | 85.6 | 54.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
28 | 7 | 190 | 200 | 90.6 | 58.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
30 | 8 | 170 | 200 | 93.9 | 62.1 | L1 | G3/4 | G1/2 | L3 | G3/8 | G3/8 |
