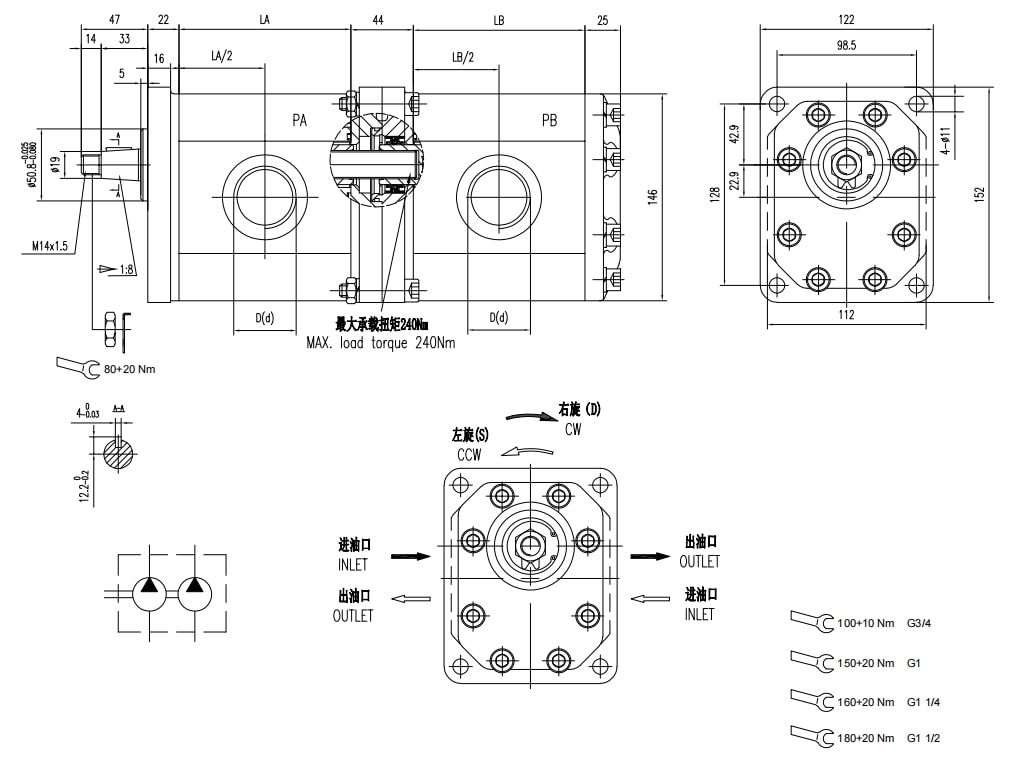

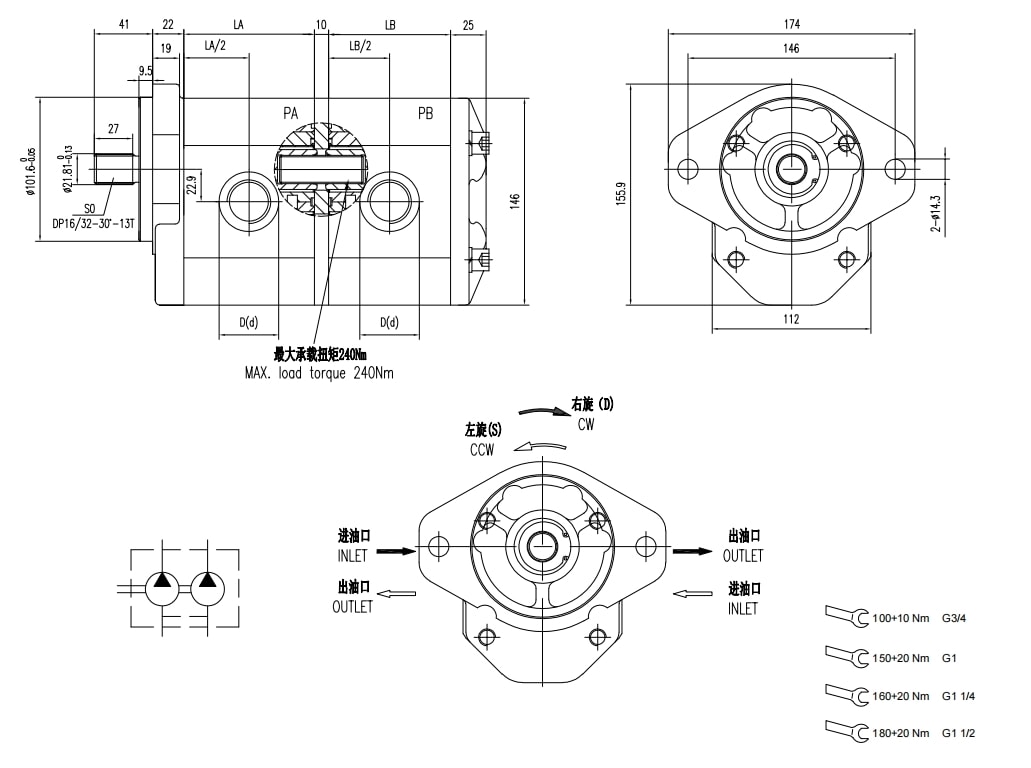

3/3系列標準型產品尺寸
聯系我們
排量 | 最大壓力 | 最高轉速 | 最低轉速 | 尺寸 | 油口代碼 | 進油口 | 出油口 | 油口代碼 | 進油口 | 出油口 |
PA | PB | PA | PB | | | LA | LB | PA | D | d | PB | D | d |
(cm3/rev.) | (cm3/rev.) | bar | bar | (r/min) | (r/min) | mm | mm | | | | | | |
20 | 20 | 250 | 250 | 2500 | 600 | 81.1 | 81.1 | L0 | G3/4 | G3/4 | L0 | G3/4 | G3/4 |
22 | 22 | 250 | 250 | 83.1 | 83.1 | L0 | G3/4 | G3/4 | L0 | G3/4 | G3/4 |
26 | 26 | 250 | 250 | 86.1 | 86.1 | L1 | G1 | G3/4 | L1 | G1 | G3/4 |
33 | 33 | 230 | 230 | 92.1 | 92.1 | L1 | G1 | G3/4 | L1 | G1 | G3/4 |
39 | 39 | 230 | 230 | 99.1 | 99.1 | L1 | G1 | G3/4 | L1 | G1 | G3/4 |
46 | 46 | 230 | 230 | 105.1 | 105.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
50 | 50 | 220 | 220 | 109.1 | 109.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
52 | 52 | 220 | 220 | 111.1 | 111.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
55 | 55 | 200 | 200 | 113.1 | 113.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
63 | 63 | 200 | 200 | 121.1 | 121.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
71 | 71 | 180 | 180 | 128.1 | 128.1 | L3 | G11/2 | G11/4 | L3 | G11/2 | G11/4 |
聯系我們
排量 | 最大壓力 | 最高轉速 | 最低轉速 | 尺寸 | 油口代碼 | 進油口 | 出油口 | 油口代碼 | 進油口 | 出油口 |
PA | PB | PA | PB | | | LA | LB | PA | D | d | PB | D | d |
(cm3/rev.) | (cm3/rev.) | bar | bar | (r/min) | (r/min) | mm | mm | | | | | | |
20 | 20 | 250 | 250 | 2500 | 600 | 81.1 | 81.1 | L0 | G3/4 | G3/4 | L0 | G3/4 | G3/4 |
22 | 22 | 250 | 250 | 83.1 | 83.1 | L0 | G3/4 | G3/4 | L0 | G3/4 | G3/4 |
26 | 26 | 250 | 250 | 86.1 | 86.1 | L1 | G1 | G3/4 | L1 | G1 | G3/4 |
33 | 33 | 230 | 230 | 92.1 | 92.1 | L1 | G1 | G3/4 | L1 | G1 | G3/4 |
39 | 39 | 230 | 230 | 99.1 | 99.1 | L1 | G1 | G3/4 | L1 | G1 | G3/4 |
46 | 46 | 230 | 230 | 105.1 | 105.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
50 | 50 | 220 | 220 | 109.1 | 109.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
52 | 52 | 220 | 220 | 111.1 | 111.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
55 | 55 | 200 | 200 | 113.1 | 113.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
63 | 63 | 200 | 200 | 121.1 | 121.1 | L2 | G11/4 | G1 | L2 | G11/4 | G1 |
71 | 71 | 180 | 180 | 128.1 | 128.1 | L3 | G11/2 | G11/4 | L3 | G11/2 | G11/4 |
